Advanced Structural Protection

Wood is a preferred material in modern construction due to its renewable nature, renewable benefits, and low climate impact, yet its natural combustibility necessitates advanced protective measures. Exterior wood fire retardants have evolved to provide high-level structural safety, particularly for buildings in the Wildland-Urban Interface (WUI) and other fire-prone environments. Understanding the difference between factory-controlled pressure treatments and topical solutions like fire retardant spray is critical for ensuring both code compliance and long-term structural integrity.

The Science of Wood Combustion and Retardant Mechanisms

To understand how advanced retardants work, it is essential to review the combustion cycle: fire requires fuel (wood cellulose and lignins), heat, and oxygen. When exposed to thermal energy, wood undergoes pyrolysis, a process where hemicellulose and cellulose decompose to release flammable volatile organic compounds (VOCs) and tars that feed the flame.

Advanced fire retardants disrupt this cycle through several thermochemical pathways:

• Char Promotion: Chemicals redirect the decomposition of cellulose away from flammable gases toward the formation of a stable, insulating carbonaceous char layer.
• Gas-Phase Inhibition: At high temperatures, retardants release non-combustible gases such as carbon dioxide, ammonia, and water vapor. These gases dilute combustible volatiles and displace oxygen at the solid-gas boundary.
• Endothermic Cooling: Some formulations, such as those containing aluminum trihydroxide, absorb heat during decomposition, effectively cooling the wood matrix and generating additional water vapor to suppress ignition.

The Critical Distinction: Pressure-Impregnation vs. Topical Sprays

A fundamental distinction exists between fire-retardant-treated wood (FRTW) and surface-applied coatings. According to the International Building Code (IBC) Section 2303.2, true FRTW is defined as wood products impregnated with chemicals by a pressure process in closed vessels at pressures not less than 50 psig.

Pressure-Impregnated FRTW

This industrial process forces fire-retardant chemicals deep into the wood’s microscopic anatomy, penetrating beyond the surface to the interior core. Products like Hoover ExteriorFireX™ and Chemco Thermex-FR® provide permanent, all-surface protection that does not rely on surface integrity. Because the protection is integrated into the wood fiber, structural members can be cross-cut, drill-holed, or notched on-site without reducing the flame-spread rating or requiring supplementary end-treatments.

Fire Retardant Spray and Topical Coatings

In contrast, a fire retardant spray, intumescent paint, or clear penetrant is applied to the exterior of the lumber after manufacture. While a high-quality fire retardant spray like Flamex PF-2 can achieve a Class A fire rating by penetrating deep into wood fibers, these treatments are not an approved method for structural protection as required by IBC Section 2303.2.2. Topical solutions rely on physical surface adhesion and can be compromised if the wood is cut or damaged, exposing the untreated interior. However, a fire retardant spray serves a vital role in protecting non-structural components, such as cedar shake shingles, exterior siding, trim, and pergolas, especially in historical preservation or retrofit applications.

Standardized Testing and Building Code Compliance

For pressure-impregnated wood to meet stringent modern codes, they must pass rigorous standardized tests that simulate both fire exposure and environmental weathering.

1. ASTM E84 (Steiner Tunnel Test): This test measures surface burning characteristics. To be classified as FRTW, the material must have a Flame Spread Index (FSI) of 25 or less.
2. ASTM E2768 (Extended 30-Minute Test): For structural ignition-resistant materials, the standard 10-minute fire test is extended to 30 minutes. The flame front must not progress more than 10.5 feet beyond the burner centerline, and the wood must show no evidence of progressive combustion.
3. ASTM D2898 (Standard Rain Test): Often called the “800-inch rain test,” this accelerated weathering protocol subjects wood to intense wetting and drying cycles over 12 weeks to ensure that the fire-retardant chemicals do not leach out.

For a product to be labeled for “Exterior” use, it must show no increase in its listed flame spread classification after completing the ASTM D2898 weathering process.

Advanced Material Technologies: Non-Leaching and Fixed Chemistries

A primary challenge for exterior wood is leaching, where rain and moisture dissolve water-soluble fire-retardant salts over time. Modern advancements have led to “fixed” chemistries that permanently lock the retardant within the wood matrix.

Non-Leaching Systems

High-performance systems like Thermex-FR® (SaferWood) utilize covalent bonding to graft fire-retardant molecules directly onto the wood polymers during the kiln-curing phase. These “fixed” systems are non-hygroscopic, meaning they do not absorb moisture from the air or corrode metal fasteners, and they do not require a protective topcoat to maintain their rating. SaferWood is notably the only FRTW to pass a 10-year natural outdoor weathering test for the California Office of the State Fire Marshal.

Thermally Modified Wood

A significant breakthrough in exterior aesthetics and safety is the combination of fire retardants with thermally modified wood. For example, Thermory Benchmark (Scots) Pine, when pressure-treated with Thermex-FR, creates a new category of Ignition Resistant, Class A thermally modified FRTW. This allows designers to use beautiful, dimensionally stable modified wood while meeting the strictest “home hardening” requirements in High Fire Hazard Severity Zones.

Structural Design and Engineering Data

Specifiers must account for the fact that the infusion of fire-retardant chemicals and the subsequent Kiln Drying After Treatment (KDAT) process can impact wood’s mechanical properties.

• Design Value Adjustments: Builders must use modification factors for properties such as bending, tension, and compression. For instance, ExteriorFireX™ provides adjustment factors ranging from 0.80 for tension to 0.90 for the modulus of elasticity.
• Fastener Compatibility: Because some older retardants were corrosive, the IBC requires fasteners for exterior FRTW to be of hot-dipped zinc-coated galvanized steel, stainless steel, silicon bronze, or copper.
• KDAT Requirements: Fire-retardant wood must be dried to a maximum moisture content of 19% for lumber and 15% for plywood before use to ensure structural stability.

Maintenance Protocols and Diagnostic Inspections

Maintaining structural fire protection requires a commitment to lifecycle care, particularly for surface-applied treatments.

• Reapplication of Sprays: Most topical fire retardant spray treatments, such as Flame Stop® II or Flamex PF-2, require reapplication every three to five years. High-moisture environments can accelerate the degradation of these surface barriers.
• Water-Droplet Test: A simple field diagnostic for penetrating sprays involves placing a droplet of water on the wood; if it absorbs rapidly rather than beading, the protective polymer sealer has degraded and must be reapplied.
• Inspecting for Damage: Passive systems should be regularly inspected for mechanical damage, such as deep scratches or abrasions that expose untreated wood fibers. If an intumescent coating is activated by heat, the expanded char must be removed, the substrate inspected, and the system reapplied to the specified dry film thickness.

Conclusion

Advancements in exterior wood fire retardants have made it possible to leverage the aesthetic and sustainable benefits of wood even in the most fire-prone regions. While a fire retardant spray offers an effective solution for decorative elements and shingles, pressure-impregnated FRTW remains the standard for structural applications where safety and code compliance are non-negotiable. By specifying materials that have passed the extended ASTM E2768 30-minute test and the ASTM D2898 rain test, architects and builders can ensure that their structures are built for long-term performance and advanced protection.

The Imperative of Flame Retardant Textiles

Textiles are fundamental to modern life, forming the canvas of our homes, transportation systems, and protective apparel. However, the inherently high surface area and organic composition of natural and synthetic fibers render them highly susceptible to combustion. In the event of an ignition, untreated fabrics act as rapid accelerants, generating flashover conditions within minutes.

To mitigate this hazard, material scientists developed fire retardant treatments for fabrics—a highly specialized branch of chemical and physical engineering designed to disrupt the chemical process of burning. As regulatory compliance sharpens and consumer awareness elevates, understanding the functional paradigms of flame retardant (FR) textiles has shifted from a legal box-ticking exercise to a core design prerequisite. This article provides a comprehensive evaluation of how fire-retardant systems operate, their application across global industries, and the shifting dynamics driven by safety, environmental regulations, and technological breakthroughs.

The Underlying Science of Fire Retardancy

To understand how fire-retardant treatments for fabrics function, one must look at the classic combustion cycle. When a textile is exposed to an external heat source, it undergoes thermal degradation, or pyrolysis. This process breaks down solid polymer chains into volatile gases, carbonaceous char, and liquid tar. If volatile gases mix with atmospheric oxygen at temperatures above their ignition point, exothermic combustion occurs. This creates a self-sustaining feedback loop: the heat from the flame accelerates further pyrolysis, expanding the fire.

The Combustion Triangle Interruption:

Fire retardant chemistry works by attacking one or more legs of the combustion triangle (fuel, oxygen, and heat) through specific chemical or physical actions, effectively forcing the fire loop to collapse.

Chemical Mechanisms: Vapor and Condensed Phases:

• Vapor Phase (Gas Phase) Action: This approach intercepts the flame itself. When heated, certain FR chemical groups release highly reactive free radicals (often halogen or phosphorus-based species). These radical scavengers flood the gas zone, reacting with and neutralizing the high-energy hydroxyl and hydrogen radicals that drive the flame propagation. Without these radicals, the exothermic reaction stalls, and the fire self-extinguishes.
• Condensed Phase Action: This mechanism works directly on the solid substrate. The chemical catalyst alters the pyrolysis path of the textile fibers. Instead of allowing the thermal energy to convert cellulose or polymers into flammable volatiles, it accelerates a dehydration reaction that transforms the carbon backbone into a thick, non-combustible carbonaceous barrier known as char. This char layer acts as an insulation blanket, shielding underlying unburned fiber from both radiant heat and oxygen.

Physical Mechanisms: Cooling and Dilution:

Physical retardants achieve flame suppression without altering chemical structures. Mineral additives like alumina trihydrate undergo an endothermic dissociation when heated. This reaction absorbs massive quantities of thermal energy, physically cooling the surrounding fabric below its pyrolysis threshold. Concurrently, this dissociation releases water vapor, which dilutes the concentration of flammable gases and oxygen in the immediate vicinity of the flame.

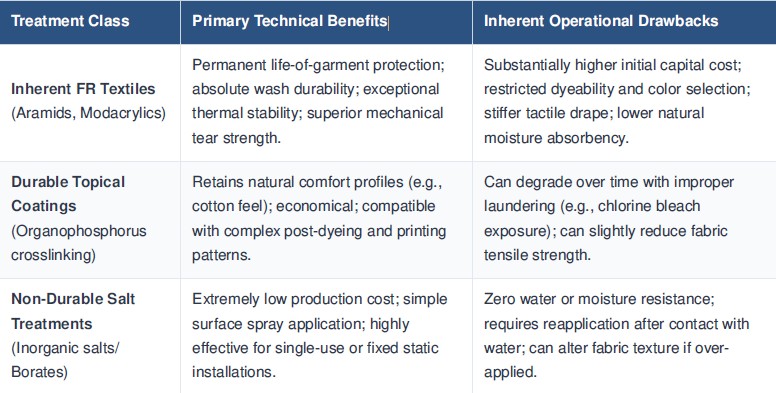

Structural Categorization: Chemical Coatings vs. Inherent Fibers

Engineers categorize fire retardant treatments for fabrics into two distinct types based on how they are built: topical chemical treatments and inherent, physically modified fibers.

Topical Chemical Treatments (Chemical Modification):

Topical fire-retardant treatments for fabrics involve applying chemical solutions to pre-existing textiles. This is usually executed through padding, exhaustion, back-coating, or spray applications. These coatings are split into two performance classes:

• Non-Durable Treatments: Generally consisting of water-soluble inorganic salts (such as ammonium polyphosphates or borates). These treatments offer cost-effective, high-yield fire protection but are highly susceptible to leaching. Laundering, heavy moisture, or atmospheric humidity will dissolve and extract the salts, stripping the textile of its protection.
• Durable Treatments: These utilize functional molecules that permanently bind to the fiber structure. For cellulosic fibers like cotton, organophosphorus compounds (such as cyclic phosphonates or tetrakis (hydroxymethyl)phosphonium salts) react covalently with the hydroxyl groups of the cellulose matrix. This creates a crosslinked chemical structure that withstands repeated heavy laundering cycles and mechanical wear without losing fire retardancy.

Inherent Flame Retardant Fibers (Physical Modification):

Inherent FR textiles are synthesized from fibers that are fundamentally flame resistant at the molecular level. Instead of a topical post-treatment, the flame-retarding properties are built directly into the raw polymer chain during synthesis or incorporated as an insoluble additive inside the polymer dope before extrusion.

Prominent examples include meta-aramids (Nomex), para-aramids (Kevlar), and modacrylic fibers. These molecules feature highly stable aromatic rings that resist thermal breakdown even at extreme temperatures, producing virtually zero flammable volatiles. Inherent fabrics retain their high performance throughout their entire life cycle, completely independent of laundering or mechanical friction.

Industrial and Commercial Applications

The selection of specific fire-retardant treatments for fabrics is strictly dictated by the unique environment and regulatory benchmarks of each industry sector.

Home Furnishings and Commercial Architecture:

In high-density architectural spaces and residential settings, interior textiles represent major fire propagation hazards. Draperies, acoustic wall panels, carpets, and upholstered furniture are governed by strict, localized fire codes, such as NFPA 701 in commercial architecture and BS 5852 (Crib 5) in hospitality environments. In these applications, topical back-coatings or cost-effective inherent polyester formulations are preferred, balancing aesthetics, drape feel, and mandatory smoke emission standards.

Personal Protective Equipment (PPE) and Duty Uniforms:

For industrial electricians, foundry workers, tactical military forces, and structural firefighters, FR fabrics are lifesaving personal shields. These garments must comply with demanding test metrics, including ASTM D6413 (vertical flame testing) and NFPA 2112 (flash fire protection). In these settings, inherent aramid blends dominate due to their structural integrity under direct flame. Durable topical cottons (like Proban or Westex UltraSoft) are also heavily utilized to provide comfortable, breathable, yet highly char-reactive alternatives for daily wear.

Transportation and Aviation Aesthetics:

The aerospace, automotive, and maritime sectors operate under exceptionally strict fire, smoke, and toxicity (FST) regulations, governed by authorities like the Federal Aviation Administration (FAA). Aircraft cabin seat covers, insulation blankets, and interior side-panels must meet vertical burn test standards while producing minimal toxic gas byproducts. Advanced wool-blend fabrics treated with specialized organophosphorus compounds or fluor product complexes are heavily favored here for their low weight and excellent natural char yield.

Environmental, Health, and Safety Considerations

The landscape of fire-retardant treatments for fabrics has undergone an unprecedented transformation due to toxicology and environmental safety regulations. Historically, polybrominated diphenyl ethers (PBDEs) and other halogenated organic treatments dominated the market due to their excellent vapor-phase efficiency. However, extensive environmental tracking revealed that these chemicals are persistent organic pollutants (POPs). They bioaccumulate in ecosystems and raise concerns regarding endocrine disruption and developmental toxicity.

Consequently, current global regulations—including the European Union’s REACH framework and the Stockholm Convention—have strictly banned or phased out traditional halogenated flame retardants. The industry has shifted significantly toward green chemistries, prioritizing halogen-free organophosphorus platforms, bio-based intumescent, and chemical systems that minimize toxic smoke and carbon monoxide generation during decomposition.

Strategic Conclusion

Fire retardant treatments for fabrics represent an evolving balance between life-safety engineering, comfort, and environmental responsibility. From heavy industrial aramid shields to durable eco-friendly topical finishes, selecting the right FR solution requires a deep understanding of combustion chemistry, application limits, and regional compliance frameworks. By keeping pace with green chemical developments and nanostructured technologies, textile manufacturers can deliver maximum flame protection while meeting the highest modern environmental standards.
